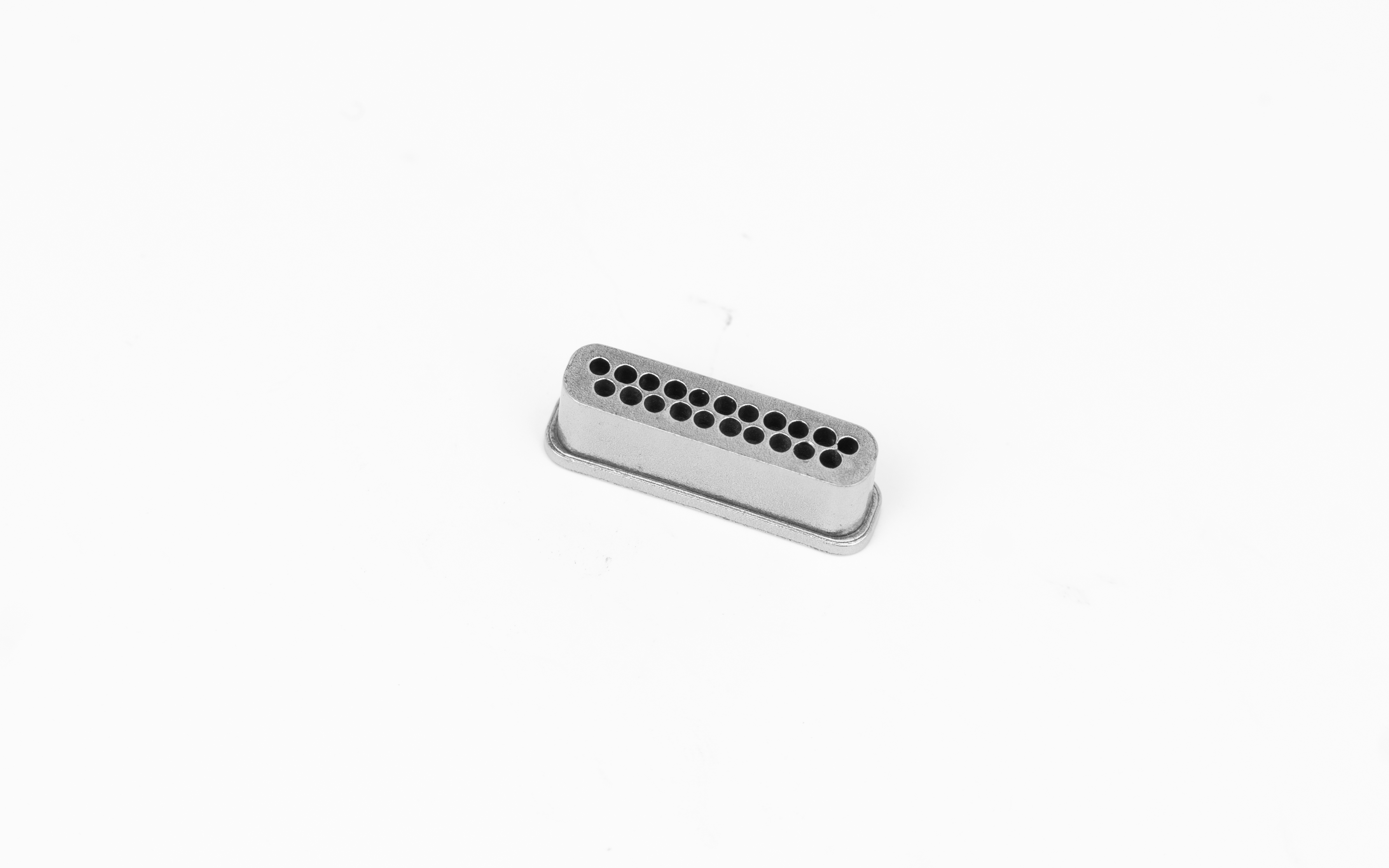

Metal Injection Molding (MIM) is a core technology in precision manufacturing. Renowned for mass-producing small, complex metal components, it is widely applied in high-end sectors including automotive parts, smart devices, and medical equipment. Precision control is critical to product competitiveness and must span the entire process—from product design and material preparation to final inspection. Even minor deviations in any stage can lead to component rejection. Based on industrial best practices and technical standards, this paper breaks down key precision control points throughout the process to support high-precision mass production.
Product design is the foundation of precision control and directly determines process controllability. Structural defects should be avoided in the design phase. Priority should be given to uniform wall thickness, with thickness variations controlled within 40%–60%. Transition fillets of at least R0.2 mm are required at corners to prevent uneven sintering shrinkage caused by sharp angles and abrupt thickness changes. Meanwhile, a sintering shrinkage allowance of 10%–20% should be reserved according to material characteristics. Moldflow simulation is used to predict shrinkage behavior and enable early mold dimension compensation, ensuring finished dimensions meet specifications. Typical mass-production dimensional tolerances are stable at ±0.3%.
Material preparation and injection molding form the core of precision control. High-sphericity metal powder with oxygen content below 500 ppm and uniform particle size distribution should be selected. Paired with an optimized binder formulation, uniform feeding without agglomeration is ensured through precise mixing, with density variation controlled within ±1% to lay a solid foundation for injection. During injection, barrel temperature, injection pressure, and holding time are strictly regulated using a three-stage temperature profile for proper binder plasticization. This avoids short shots, voids, and internal stresses that cause deformation or cracking during debinding and sintering.
Debinding and sintering are decisive for final precision, focusing on consistent shrinkage and defect prevention. A multi-stage debinding process with gradient heating controls removal rate, ensuring binder residue ≤0.5% to avoid blistering and excessive carbon during sintering. Sintering is performed in continuous vacuum furnaces with precise heating rates and holding times, supported by anti-deformation fixtures. Shrinkage variation within a batch is controlled within ±0.5%, achieving component density above 96%. Dimensional precision reaches IT8–IT10, and can be refined to IT7 for high-precision applications.
Finished product inspection and full-process control close the loop for precision assurance. Coordinate measuring machines (CMM) and industrial CT are used for comprehensive inspection of dimensional errors, geometric tolerances, and internal defects. Flatness and concentricity are controlled within 0.1 mm per 100 mm, and surface roughness meets Ra ≤1.6 μm. Statistical Process Control (SPC) monitors key parameters in real time for timely correction. A 3%–5% sample from each batch undergoes full inspection, ensuring a batch pass rate ≥99%.
MIM precision control is a systematic, multi-parameter, and strongly coupled engineering discipline requiring coordinated optimization of design, materials, processing, and inspection. Only through strict source control and refined process management can stable high-precision mass production be achieved. This promotes wider application of MIM in high-end precision manufacturing and enhances enterprises’ core competitiveness.
