Understanding MIM Technology: A Near‑Net‑Shape Process Combining Injection Molding and Powder Metallurgy

In precision manufacturing, traditional processes have long been trapped in a dilemma: conventional powder metallurgy enables cost‑effective mass production of metal parts yet is limited to simple geometries with moderate accuracy. Plastic injection molding delivers intricate free‑form shapes, but cannot achieve the high strength and wear resistance of metallic materials. To address this industry‑wide challenge, Metal Injection Molding (MIM) was developed. Innovatively integrating strengths from both injection molding and powder metallurgy, MIM stands out as a representative near‑net‑shape technology in high‑end manufacturing and has completely transformed production modes for miniature precision metal components.

Near‑net‑shape forming essentially means that as‑formed parts meet service requirements with little or no secondary processing, closely matching designed dimensions — this defines the core feature of MIM. Unlike subtractive‑manufacturing‑based conventional machining, MIM is classified as a near‑net‑shape forming process. It seamlessly combines the design flexibility of injection molding with the metal‑forming merits of powder metallurgy, balancing structural diversity and mechanical performance of metallic parts.

The full MIM workflow is mature and standardized, consisting of four major stages. First is feedstock preparation: ultra‑fine metal powder is homogeneously blended with polymeric binders at precise ratios to produce specialized feedstock with stable flow properties for subsequent injection. Second comes injection molding: the feedstock is injected into precision molds to rapidly form green‑state blanks with target geometries, enabling one‑piece forming of highly complex profiles. Next, debinding removes binders entirely from blanks, leaving behind a skeleton of pure metal powder. Finally, high‑temperature sintering densifies metal powder particles to boost part density and strength, yielding finished components.

Thanks to its hybrid process principle, MIM delivers unique advantages unmatched by conventional alternatives. Compared with conventional powder metallurgy, MIM breaks structural constraints and manufactures sophisticated precision parts featuring thin walls, micro‑holes, hollow features and contoured surfaces with greatly improved dimensional accuracy. Against subtractive processes such as CNC and turning, MIM avoids massive raw‑material loss and achieves material utilization above 95 %, cutting manufacturing costs fundamentally. Its automated mass‑production workflow delivers higher throughput, ideal for large‑scale standardized manufacturing. Furthermore, sintered MIM parts exhibit uniform density, high hardness and excellent wear resistance, with mechanical properties comparable to forged components.

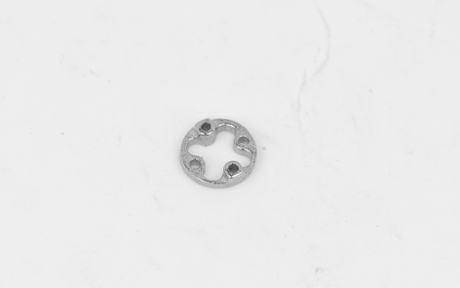

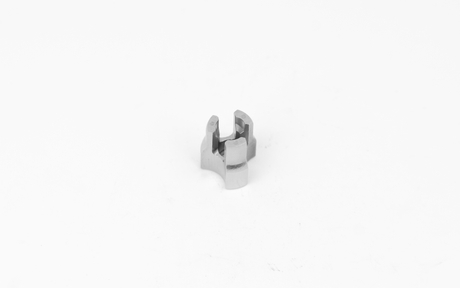

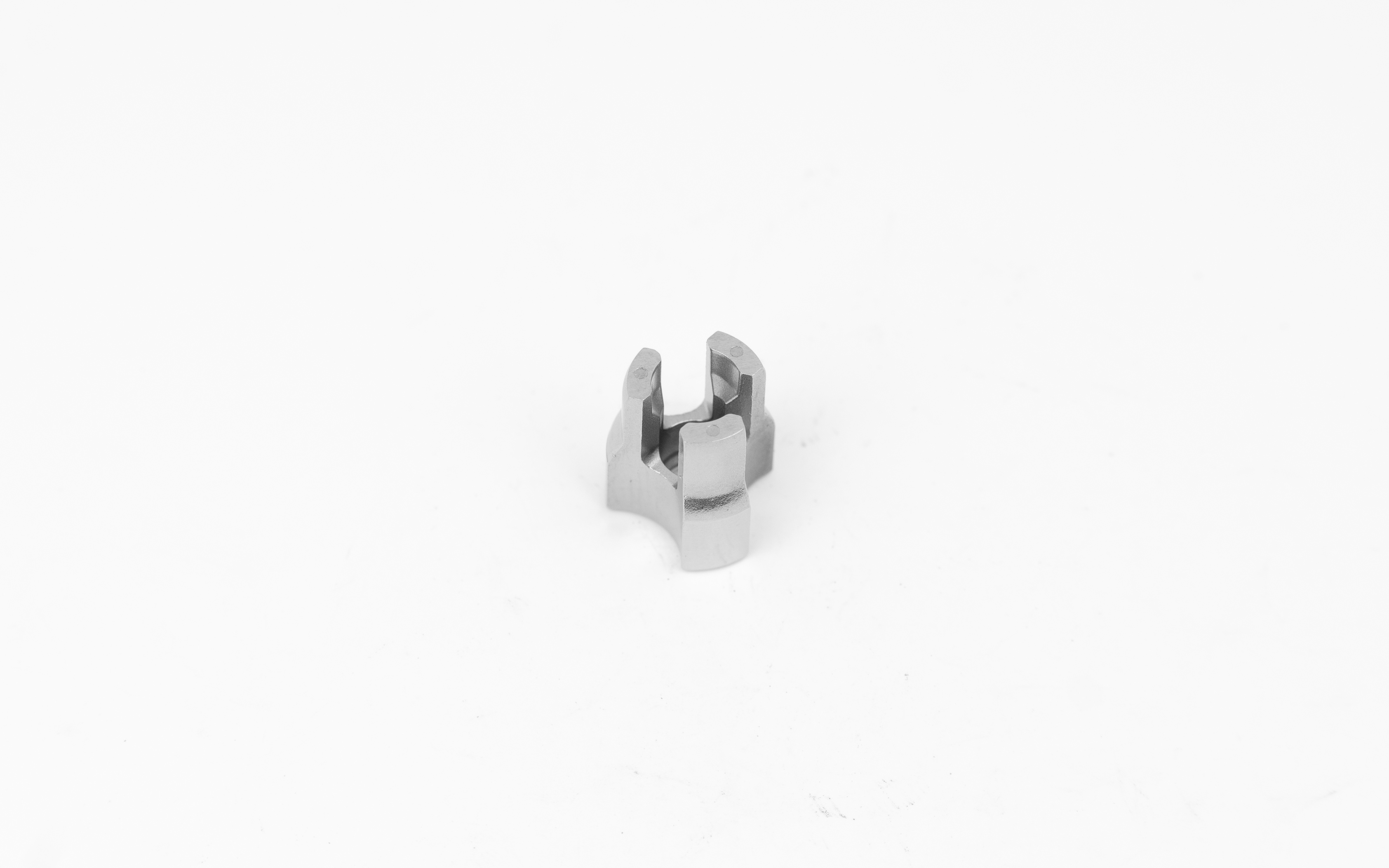

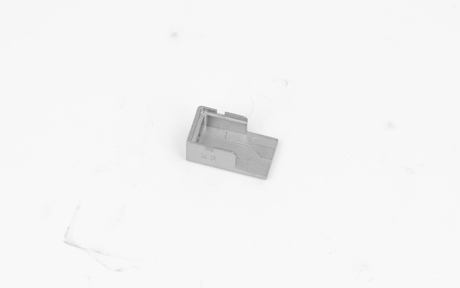

Leveraging these comprehensive strengths, MIM near‑net‑shape technology has gained wide adoption across high‑end industries. It is extensively used for precision structural components in consumer electronics, minimally invasive surgical instruments, electronic‑control parts for new‑energy vehicles, miniature fittings for industrial robots and small precision aerospace components. Amid manufacturing’s shift toward finer detail, lightweighting and cost efficiency, MIM fits industry development demands perfectly.

In summary, MIM is not merely a simple combination of two existing processes, but an innovative upgrade in manufacturing technology. Centered on near‑net‑shape capability, it compensates for weaknesses in traditional metal‑manufacturing methods and strikes a balance among four critical dimensions: accuracy, geometry flexibility, mechanical performance and cost. Today, MIM has become a preferred process for mass‑producing miniature precision metal parts, continuously underpinning high‑quality growth within the high‑end equipment‑manufacturing sector.
