From the smartphones in our palms to the laptops on our desks, modern electronic devices are rapidly evolving to be lighter, thinner, more powerful, and offer more diverse interactive experiences. In this technological wave, a seemingly small yet critically important component—the hinge—has become a decisive factor in product design and user experience. How can a seamless, smooth, and even revolutionary opening, closing, and folding motion be achieved in an extremely limited space? The answer lies in metal injection molding hinge technology.
This process is enabling the mass production of incredibly complex MIM parts (Metal Injection Molding parts) that are nearly impossible for traditional manufacturing methods to achieve cost-effectively. It is not just the foundation of the precision hinge; it is the key to unlocking the future of foldable technology.
This article will take a deep dive into the world of the metal injection molding hinge. We will provide a comprehensive analysis from its core technological advantages and disruptive cross-industry applications to its material science, design principles, and future trends, offering a complete guide to this jewel of precision manufacturing.
When a hinge needs to integrate complex functions like lifting, multi-angle positioning, and 360-degree rotation, the geometric complexity and precision requirements of its internal parts increase exponentially. Metal Injection Molding (MIM) stands out as the premier choice for manufacturing these precision components due to four unparalleled advantages.

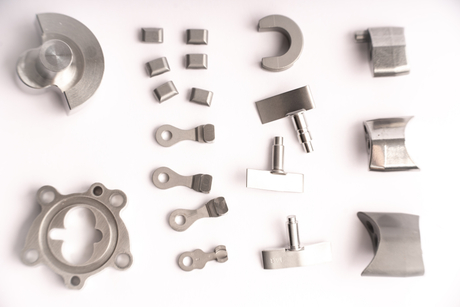

Modern hinges, especially the multi-link mechanisms in laptops and foldable phones, contain numerous tiny parts with irregular shapes, cams, gears, sliders, and stoppers.
One-Step Molding: MIM technology can form these complex 3D geometries in a single injection molding step, much like plastic.
Part Consolidation: More revolutionarily, MIM can consolidate multiple components that would otherwise require stamping, machining, and welding into a single, high-strength MIM part. This integration not only dramatically simplifies the supply chain and assembly process but also significantly enhances the hinge's overall strength and long-term reliability by reducing tolerance stack-up.
As a moving component, a hinge's lifespan directly impacts product success. It must withstand tens of thousands, or in the case of foldable phones, hundreds of thousands of opening and closing cycles. This places extreme demands on the wear resistance and fatigue strength of its MIM parts.
High Density: After the high-temperature sintering process, MIM parts can achieve a density of over 98% of the theoretical maximum.
Performance Comparable to Forgings: This gives them mechanical properties comparable to traditional forged or machined parts. For example, commonly used MIM stainless steels like 17-4PH possess outstanding hardness and tensile strength, fully meeting the performance requirements for a high-end precision hinge in demanding applications.
The smooth feel, precise damping, and silent operation of a hinge are born from the micron-level precision fit between its internal components.
The success of a metal injection molding hinge lies in the MIM process's ability to mass-produce parts with extremely tight dimensional tolerances (typically ±0.3% to ±0.5%) with high consistency. This remarkable consistency ensures that every hinge leaving the factory provides the same flawless, high-quality user experience.
With shipment volumes in the millions for consumer electronics, their components must deliver high performance at a very low unit cost.
Although MIM tooling has a relatively high upfront cost, its highly automated process and exceptional material utilization rate of over 95% (compared to CNC machining, where material waste can exceed 50%) make the cost per individual MIM part extremely competitive in mass production.
The application scope of metal injection molding hinge technology is far broader than one might imagine, acting as a key enabler for innovative design across multiple industries.

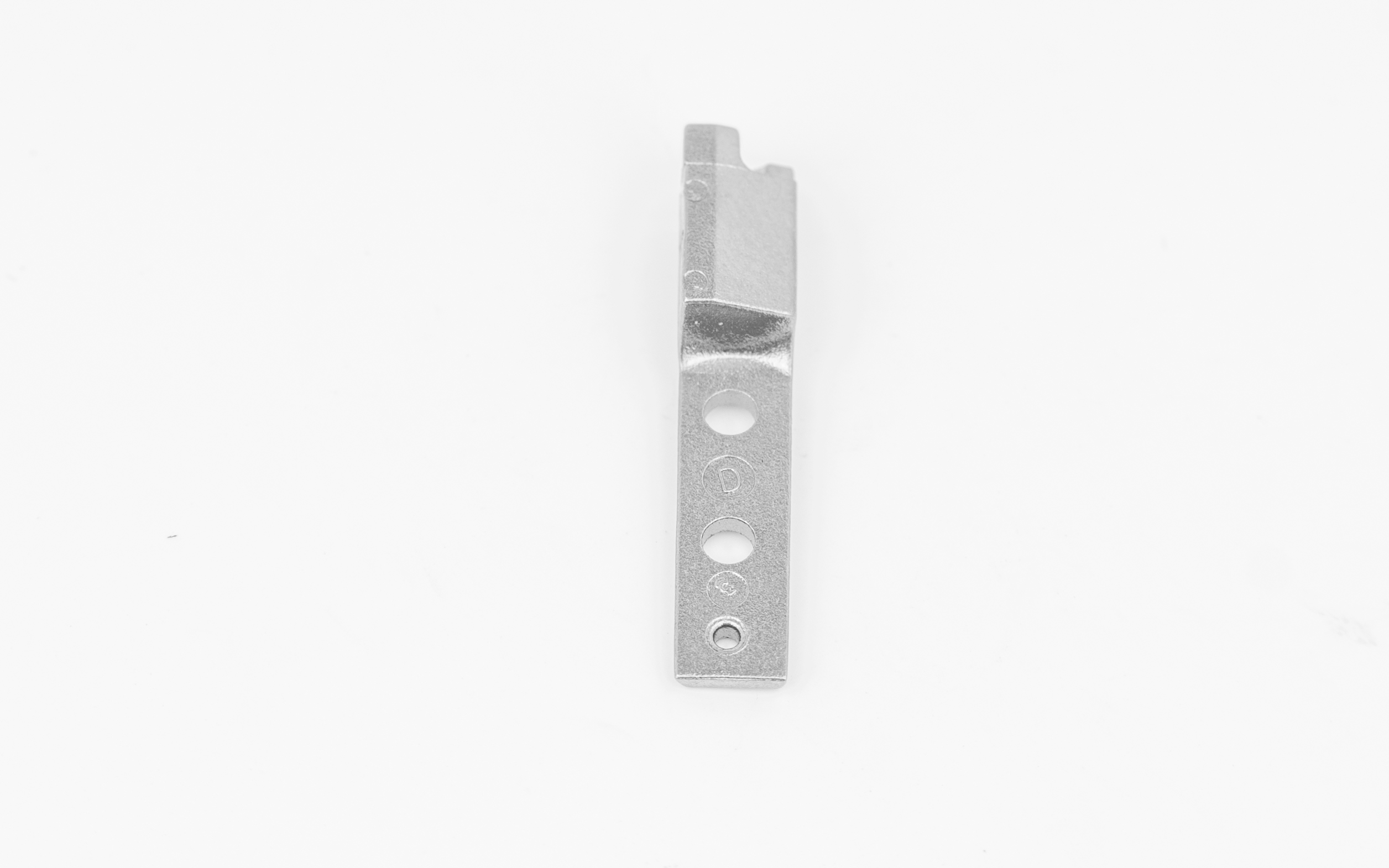

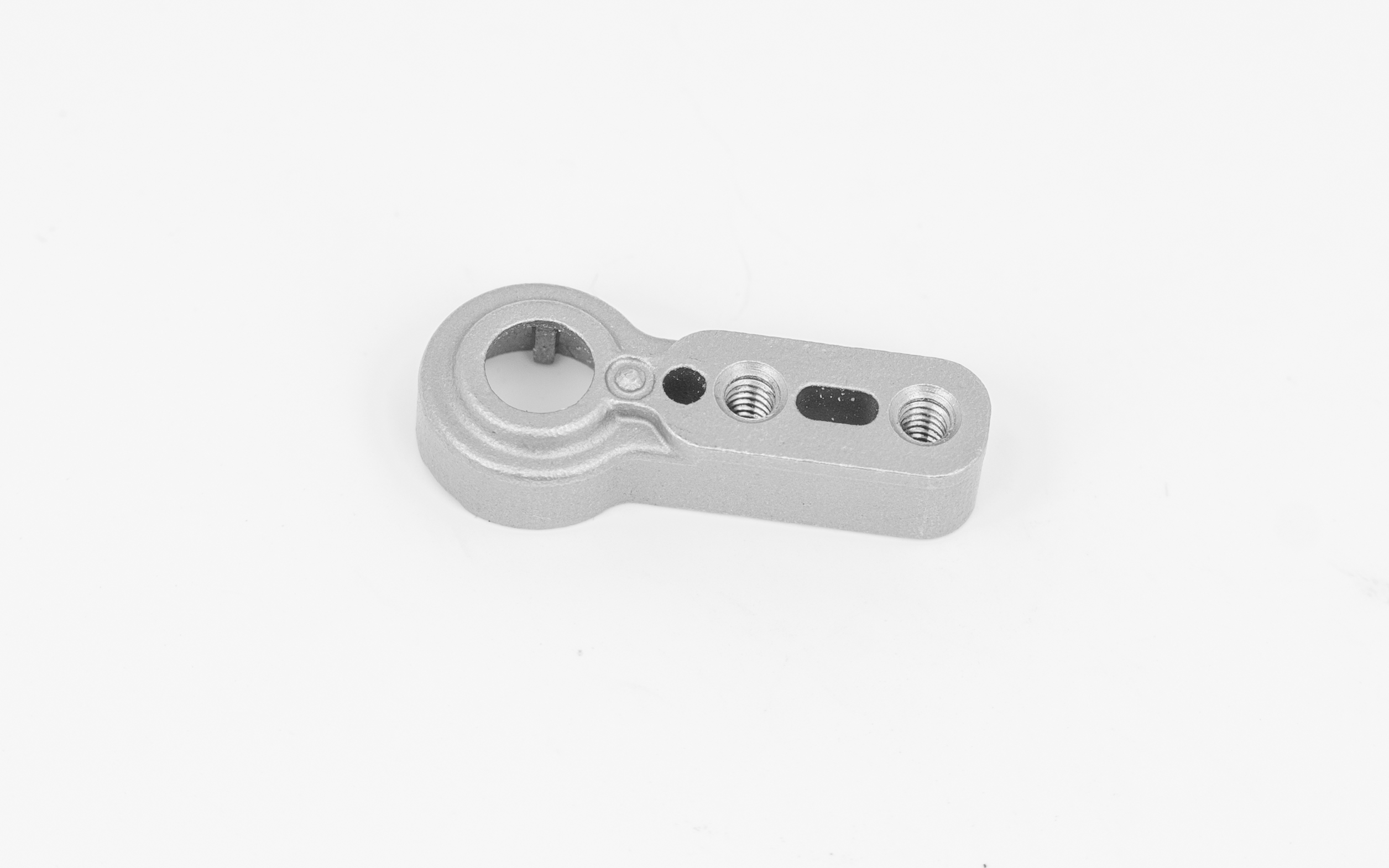

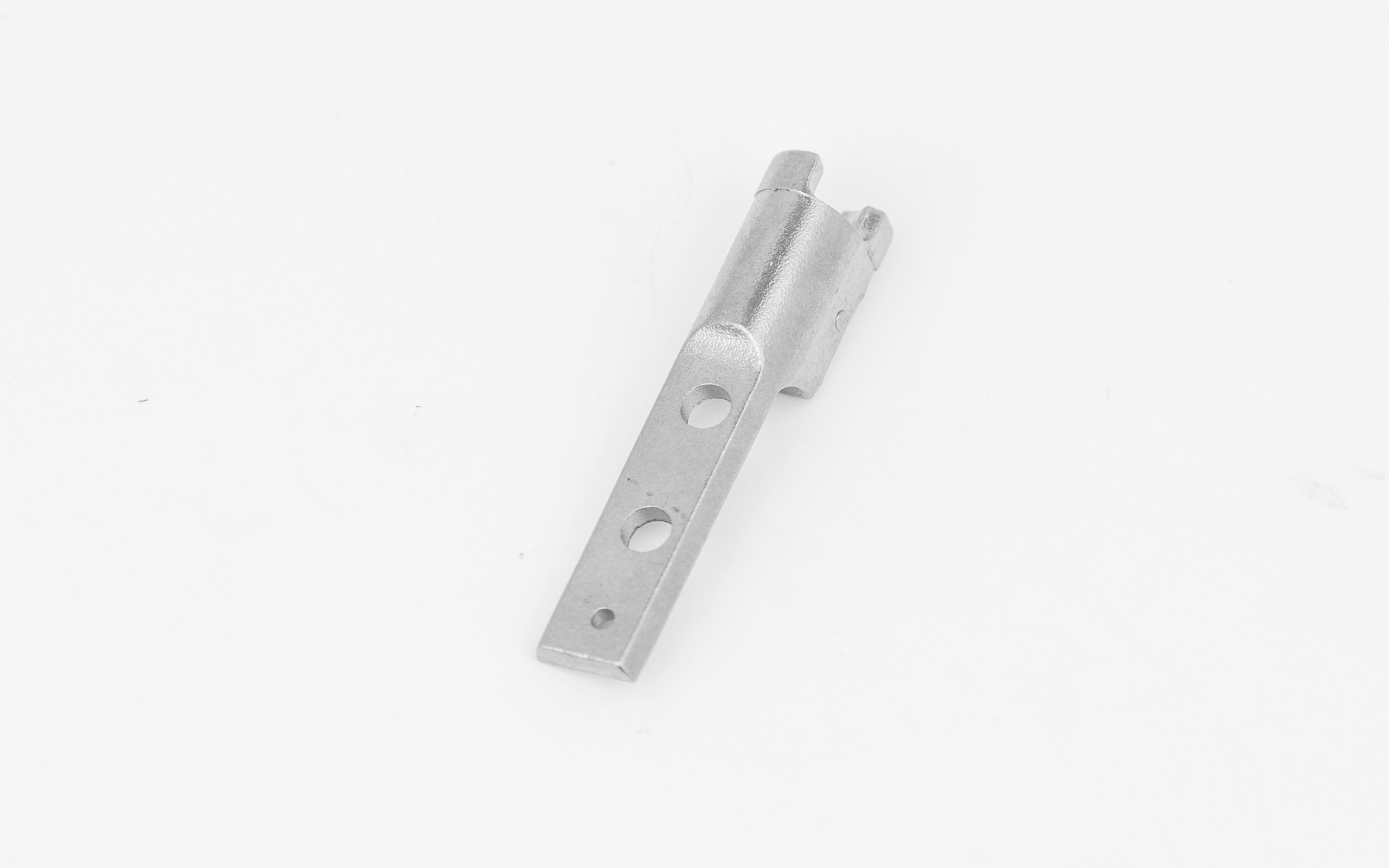

Laptop Hinges: This is the most mature and widespread application for MIM hinges. MIM has been instrumental in the evolution from simple barrels to the complex multi-link mechanisms that support 360-degree flips, screen-lifting, and one-handed opening.

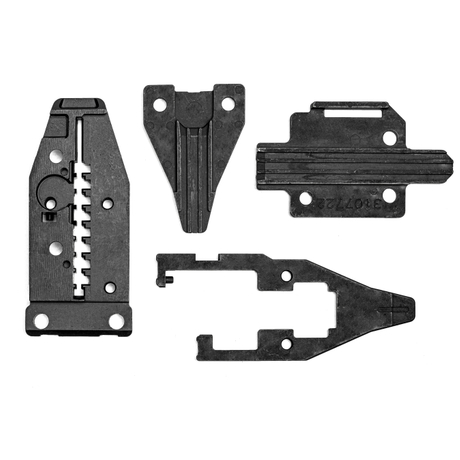

Foldable Devices (Phones/Tablets): This is currently the crown jewel of MIM hinge technology. The core teardrop hinge or U-shaped hinge in flagship devices like the Samsung Galaxy Fold or Huawei Mate X series integrates dozens, or even hundreds, of intricately shaped MIM parts.
The Technical Core: These tiny linkages, sliders, gears, and cams work in precise coordination to solve top-tier industry challenges like screen creasing, smooth actuation, and multi-angle free-stopping. It is no exaggeration to say that without MIM, today's foldable phones would not exist.
Emerging Smart Devices: The magnetic hinges in TWS earphone charging cases, the quick-release buckles on smartwatch bands, and the adjustment mechanisms in AR/VR glasses all represent a growing demand for the miniaturized, highly reliable precision hinge that MIM technology excels at producing.
Medical Devices: Joints in surgical instruments, bending sections of endoscopes, and hinges for precision instrument cases.
Automotive Industry: Damping hinges for center consoles, glove boxes, and infotainment screens, as well as high-strength gears in seat adjustment mechanisms.
High-End Hardware: Hidden hinges and lock components in premium cabinetry and architectural hardware that require silent, smooth, and high-load-bearing performance.
Selecting the right material and adhering to specific design principles are crucial for unlocking the full potential of a metal injection molding hinge.
Stainless Steels (17-4PH, 316L): The workhorse materials. They offer a perfect balance of high strength, excellent wear resistance, and outstanding corrosion resistance, making them the top choice for most consumer electronic precision hinges.
Low-Alloy / Tool Steels (M2, S7): When certain parts of a hinge, like a locking mechanism, require even higher hardness and extreme wear resistance, these materials come into play.
Titanium Alloys (Ti-6Al-4V): The choice for premium applications demanding extreme lightweighting and biocompatibility, such as in high-end smartwatches or medical implant-grade hinges.
To maximize the benefits of the MIM process and reduce costs, designers should follow these principles when creating MIM parts:
Uniform Wall Thickness: Strive for consistent wall thickness throughout the part. Avoid overly thick or thin sections and use "coring" (creating hollow sections) to optimize material distribution.
Utilize Radii and Fillets: Add generous radii to corners and edges. This improves the flow of the metal feedstock during injection and reduces stress concentration, extending tool life.
Integrate Features: Fully leverage the MIM process by designing features like holes, threads, knurling, and logos directly into the part to eliminate expensive secondary operations.
Think in Terms of Consolidation: Break from traditional design constraints. Actively look for opportunities to consolidate multiple parts into a single, integrated component to simplify the structure and fundamentally reduce cost.
While metal injection molding hinge technology has achieved tremendous success, it continues to evolve to meet future challenges and opportunities.
Extreme Performance Demands: The market's expectation for foldable phone durability is rising from 200,000 to 400,000 folds and beyond. This poses a severe challenge to material fatigue life and the long-term precision of the hinge.
Constant Cost Pressure: As innovative technologies become mainstream, the pressure to control hinge costs will intensify.
New Material Exploration: The industry is actively exploring new materials like amorphous alloys (liquid metal) that offer higher strength and better elasticity, which could serve as a supplement or alternative to MIM.
Ultra-Miniaturization and High Integration: With the rise of wearables like AR/VR glasses and smart rings, the demand for ultra-small precision hinges at the millimeter or even sub-millimeter scale will explode.
Functional Composites: Future hinges may be more than just mechanical structures. They could evolve into mechatronic modules that integrate sensors or routing channels for flexible printed circuits (FPCs).
Synergy with Additive Manufacturing: Metal 3D printing (SLM/DMLS) can be used for the rapid prototyping of MIM hinge designs or for fabricating the injection molds themselves, dramatically shortening R&D cycles and accelerating innovation.
The Metal Injection Molding Hinge has transitioned from a behind-the-scenes hero to a center-stage star that defines product form and function. Through its perfect balance of shape complexity, precision, material strength, and cost-effectiveness, it has become the core engine driving the development of modern precision devices.
Every time we smoothly open a laptop or flawlessly fold a smartphone, the meticulous craftsmanship of MIM technology is at work. Looking ahead, on the journey toward a future of universal connectivity, MIM and the precision MIM parts it creates will continue to play an indispensable role—not just manufacturing hinges, but shaping the very way we interact with the intelligent world of tomorrow.
