Precision Redefined: How MIM Parts Are Reshaping Modern Automotive Manufacturing
In the face of rising demands for cost-efficiency, lightweighting, and increasingly complex components, the automotive industry is re-evaluating traditional manufacturing techniques. Conventional methods such as CNC machining and investment casting often struggle to meet these evolving requirements without compromising on performance or cost.
Enter Metal Injection Molding (MIM) — a near-net-shape technology that merges the design freedom of plastic injection molding with the mechanical integrity of powder metallurgy.
This article explores how MIM parts are gaining traction in the automotive sector. We'll examine its technical advantages, real-world applications, material selection, cost-effectiveness, and how it stacks up against other manufacturing methods.

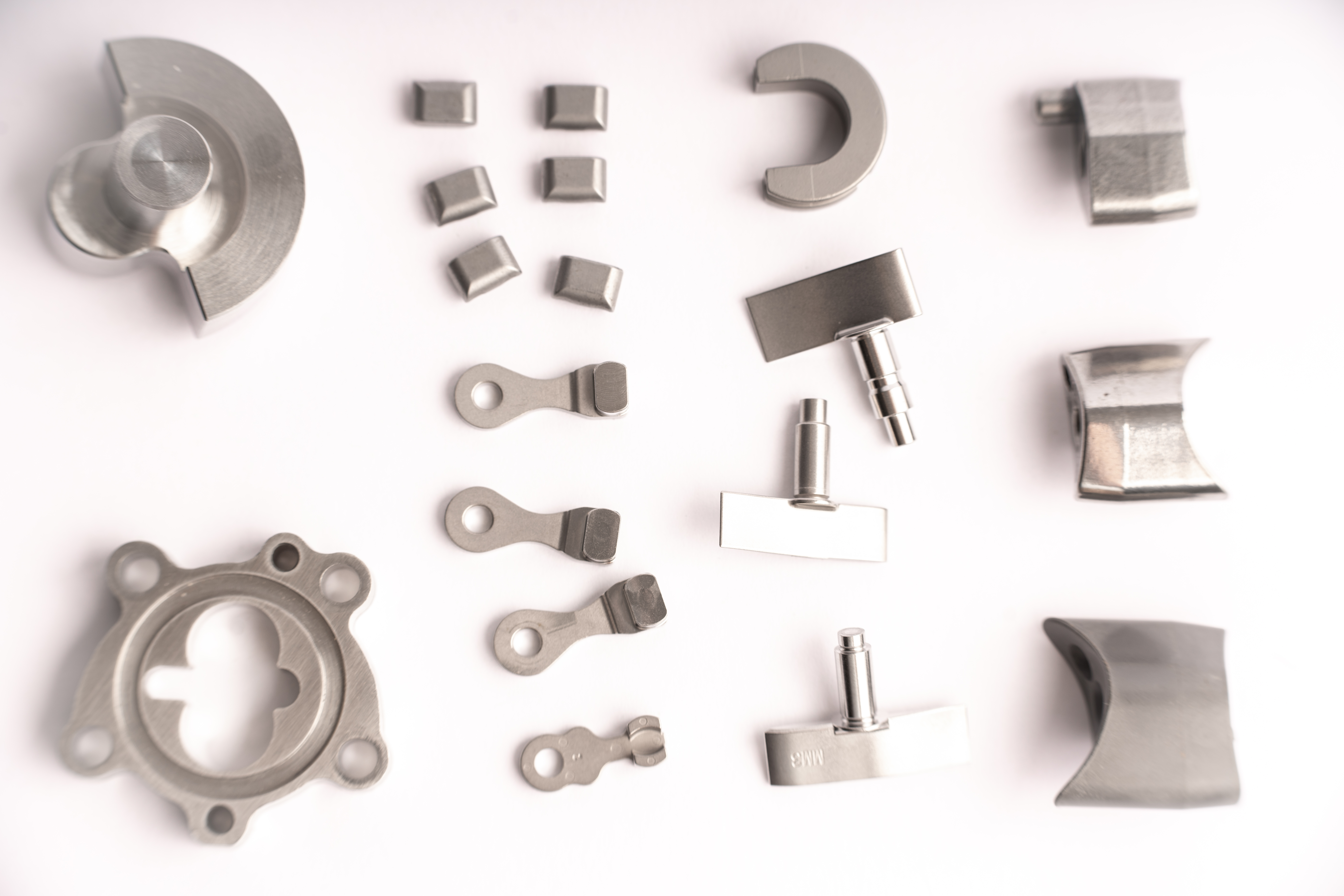

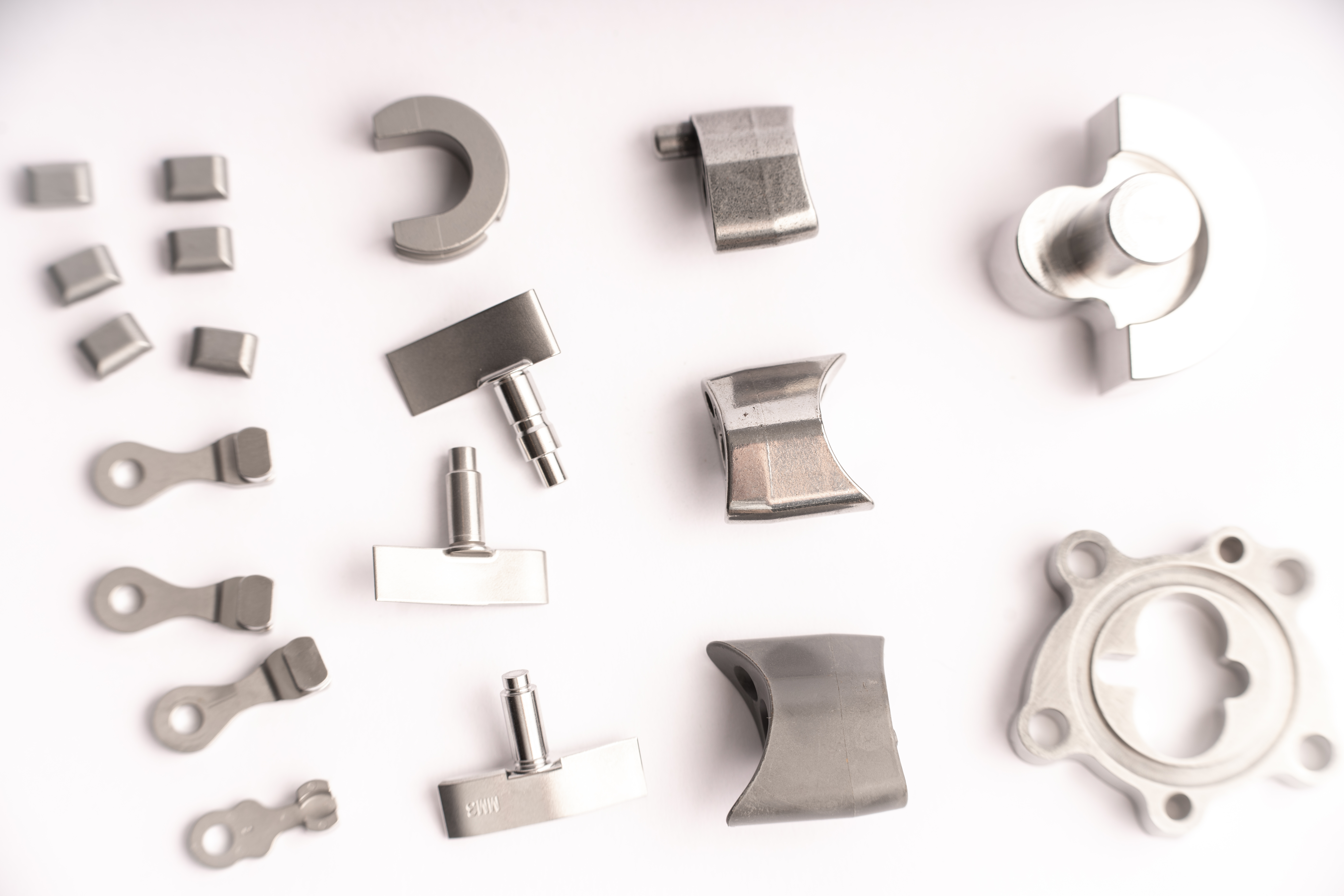

MIM enables the production of intricate 3D metal parts that include undercuts, threads, internal cavities, knurls, and thin walls — all in a single injection process.
Consolidates multiple components into one
Reduces assembly time
Improves reliability
Simplifies supply chains
Post-sintered MIM parts reach densities between 95% to 99% of theoretical values.
Strength, hardness, and fatigue resistance comparable to forged or machined parts
Example: 17-4PH stainless steel offers >1100 MPa tensile strength and up to HRC 45 hardness
Dimensional accuracy: ±0.3% to ±0.5%
Surface finishes of Ra 1-2 μm
Often eliminates secondary machining
Economical for >50,000 units/year
Over 95% material utilization
High automation minimizes labor cost
Turbocharger Components: Vanes and wheels endure high heat and stress
Valve Train Parts: Rocker arms, tappets, and VVT components with tight tolerances
Fuel System Parts: High-pressure pump internals and injector tips
Shift Forks, Parking Pawls: Require durability and precision
Synchronizer Hubs and Keys: Complex profiles with reliable performance
Steering Rack & Screws: Precision-machined surfaces with high wear resistance
Airbag & Seatbelt Locks: Safety-critical MIM parts offer high strength
Sensor Housings: Threaded and cavity-rich structures for temperature and pressure sensors
Connectors & EMI Shields: Dense parts for electromagnetic compatibility
Interior Levers & Gears: Compact, durable parts for seat and dash mechanisms
17-4PH, 316L: High strength, corrosion-resistant; ideal for turbo and sensor housings
Fe-Ni Alloys (FN02, FN08): Cost-effective, widely used in locks and gears
Fe-Si, Fe-Ni: Ideal for solenoid valves and ABS sensor cores
Titanium, Superalloys: Targeted for EVs and weight-sensitive applications
| Process | Shape Complexity | Dimensional Precision | Material Utilization | Unit Cost (Mass Prod.) | Tooling Cost | Best For |
|---|---|---|---|---|---|---|
| MIM | ★★★★★ | ★★★★ | ★★★★★ | ★★ | ★★★★★ | Small, complex, high-volume parts |
| Traditional PM | ★★ | ★★★ | ★★★★ | ★ | ★★★★ | Simple, high-volume 2.5D parts |
| Investment Casting | ★★★★ | ★★★ | ★★★ | ★★★ | ★★★ | Large, complex metal parts |
| CNC Machining | ★★★★★ | ★★★★★ | ★★ | ★★★★★ | ★ | Prototypes, ultra-precise, low-volume parts |
High tooling investment
Suited for parts <100g
Time-intensive debinding and sintering
EV Innovation: Cooling manifolds, drive unit gears, charging components
Autonomous Systems: MIM brackets and housings for sensors and cameras
Lightweight Design: Topology-optimized, hollow, and mesh structures
Technological Advances: Dual-material MIM, AI-aided mold design, hybrid MIM + 3D printing
Metal Injection Molding is no longer a niche solution — it is a strategic technology in modern automotive manufacturing. With unmatched capabilities in complexity, precision, and cost-efficiency at scale, MIM parts are enabling the next generation of automotive innovation. As the sector evolves toward electrification, automation, and sustainability, MIM is poised to play a crucial role.
