Combining advantages of powder metallurgy and injection molding, Metal Injection Molding (MIM) represents an advanced near‑net‑shape manufacturing technology. It enables one‑step forming of thin‑walled, special‑shaped metallic parts featuring micro‑holes and intricate internal cavities. Material utilization exceeds 97 %, and post‑sintering density approximates forging‑level performance. MIM delivers mass‑production component solutions balancing performance, cost and batch‑to‑batch consistency across four key sectors: power tools, automotive, medical devices and humanoid robots.
Within the power‑tool industry, lithium‑ion brushless tools are evolving toward higher power density, lighter weight and extended service life. Transmission gears, impact‑resistant structural parts, motor bases and trigger assemblies must endure high‑frequency impact loads while maintaining compact dimensions. MIM integrates splines, special‑shaped fasteners and complex cavities into single‑piece components, replacing multi‑part assemblies. Alloy steel and stainless‑steel grades are deployed; heat treatment delivers high hardness and impact resistance suited for heavy‑duty operating conditions of electric hammers and impact wrenches. Supported by multi‑cavity molds and automated sintering lines, stable monthly output reaching millions of units is achievable. Compared with CNC machining, MIM yields markedly lower comprehensive costs under high‑volume conditions, ideally matching mass‑production requirements for power tools.
Small‑sized precision functional components in the automotive industry demand rigorous reliability, temperature‑ and corrosion‑resistance plus stable batch‑to‑batch performance. MIM mass‑production solutions cover sensor housings, latching mechanisms, miniature gearbox assemblies and safety‑system components. For automotive operating environments, alloys including 17‑4PH and 316L are deployed. Side holes, fasteners and mounting interfaces are formed in‑situ in one step to reduce secondary machining. Full‑process control ensures batch‑dimensional consistency and supports automotive‑grade quality traceability. MIM facilitates automotive‑component lightweighting and supports cost‑reduction and efficiency‑improvement targets for new‑energy‑vehicle precision parts.

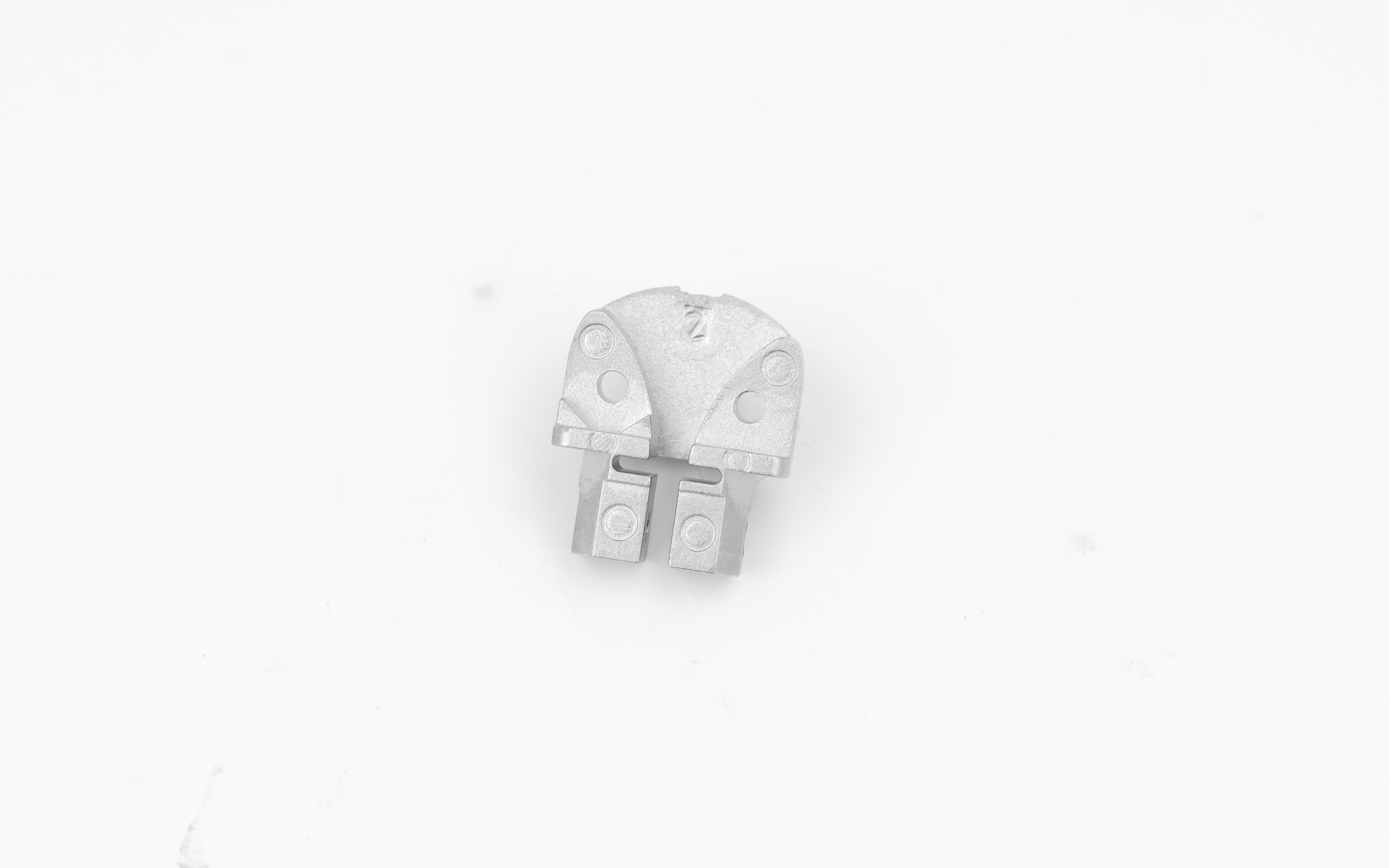

Medical‑sector components pursue micro‑precision, biocompatibility and controlled clean‑manufacturing environments. MIM is applied to surgical‑instrument jaw components, dental orthodontic accessories and minimally‑invasive‑instrument parts. Medical‑grade 316L stainless steel and titanium alloy feedstocks fabricate fine threads, ultra‑thin cutting edges and complex clamping structures. MIM medical‑production workflows emphasize clean‑room manufacturing and complete batch‑traceability systems, delivering superior surface quality and complying with medical‑device certification requirements. For micro‑scale special‑shaped components difficult to produce via conventional machining, MIM near‑net‑shape forming greatly reduces fine‑machining workload and enables stable large‑volume supply of precision medical components.
The humanoid‑robot boom further amplifies the industrial value of MIM. Robot joints, dexterous hands, connecting rods, micro‑gearboxes and sensor housings occupy confined spaces and must simultaneously satisfy lightweighting, high strength and high precision. MIM fabricates thin‑walled components with wall thicknesses ranging from 0.3 mm to 0.5 mm. Gears, mounting bases and reinforcing ribs are integrally formed to mitigate accumulated tolerance from assembly. Heat‑treated 17‑4PH components deliver outstanding strength, reconciling weight reduction and fatigue resistance. While single‑part CNC machining used to entail long cycle times, mold‑based MIM drastically shortens per‑unit forming cycles and supports humanoid‑robot scaling from prototype development toward ten‑thousand‑unit mass‑volume production, providing proven mass‑production pathways for joint‑transmission and dexterous‑hand actuators.
Successful MIM mass‑production implementation hinges on early‑stage DFM for manufacturability, feedstock‑formula optimization, mold‑shrinkage compensation and closed‑loop management across debinding and sintering workflows. Tailored solutions covering material selection, mold development, process parameters and post‑processing are developed to satisfy differentiated cross‑industry requirements. As downstream industries keep upgrading, MIM technology will further unlock precision‑manufacturing potential and empower high‑quality development of high‑end‑equipment industrial chains.
