In precision manufacturing, special‑shaped, thin‑wall and multi‑curved‑surface parts have long presented processing challenges. Conventional technologies require process segmentation and cumbersome workflows, making it difficult to balance forming precision and production costs. Metal Injection Molding (MIM) provides an integrated‑production solution for special‑shaped complex parts and has become a core process for precision‑component manufacturing.
MIM is an advanced manufacturing technology combining plastic injection molding and powder metallurgy. Ultra‑fine metal powder and polymeric binders are proportionally mixed to prepare homogeneous feedstock. Injection‑molding equipment injects the feedstock into molds to form green parts with complex geometries in a single operation. Subsequent debinding and high‑temperature sintering remove binders and densify metal powder to obtain high‑density metal finished products. The whole process can realize one‑step forming of complex geometries that would otherwise require multiple conventional‑process steps, eliminating extensive secondary cutting.
MIM shows particular advantages for special‑shaped parts with inner grooves, micro holes, complex curved surfaces and hollow structures. When conventional machining deals with such parts, segmented fabrication followed by welding and assembly is often required, which brings poor joint strength, unreliable dimensional consistency and low yield rates. By contrast, MIM delivers monolithic mold‑based forming. Parts feature continuous, intact structures without splicing seams and achieve higher structural strength. Meanwhile, MIM supports automated mass production with large batch output. It greatly reduces labor input and fixture costs and shortens production cycles.

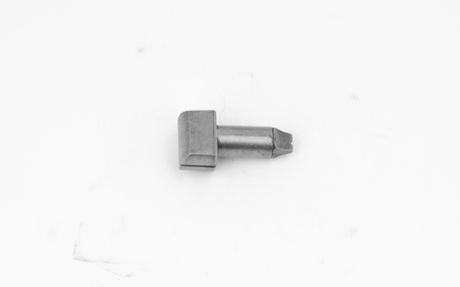

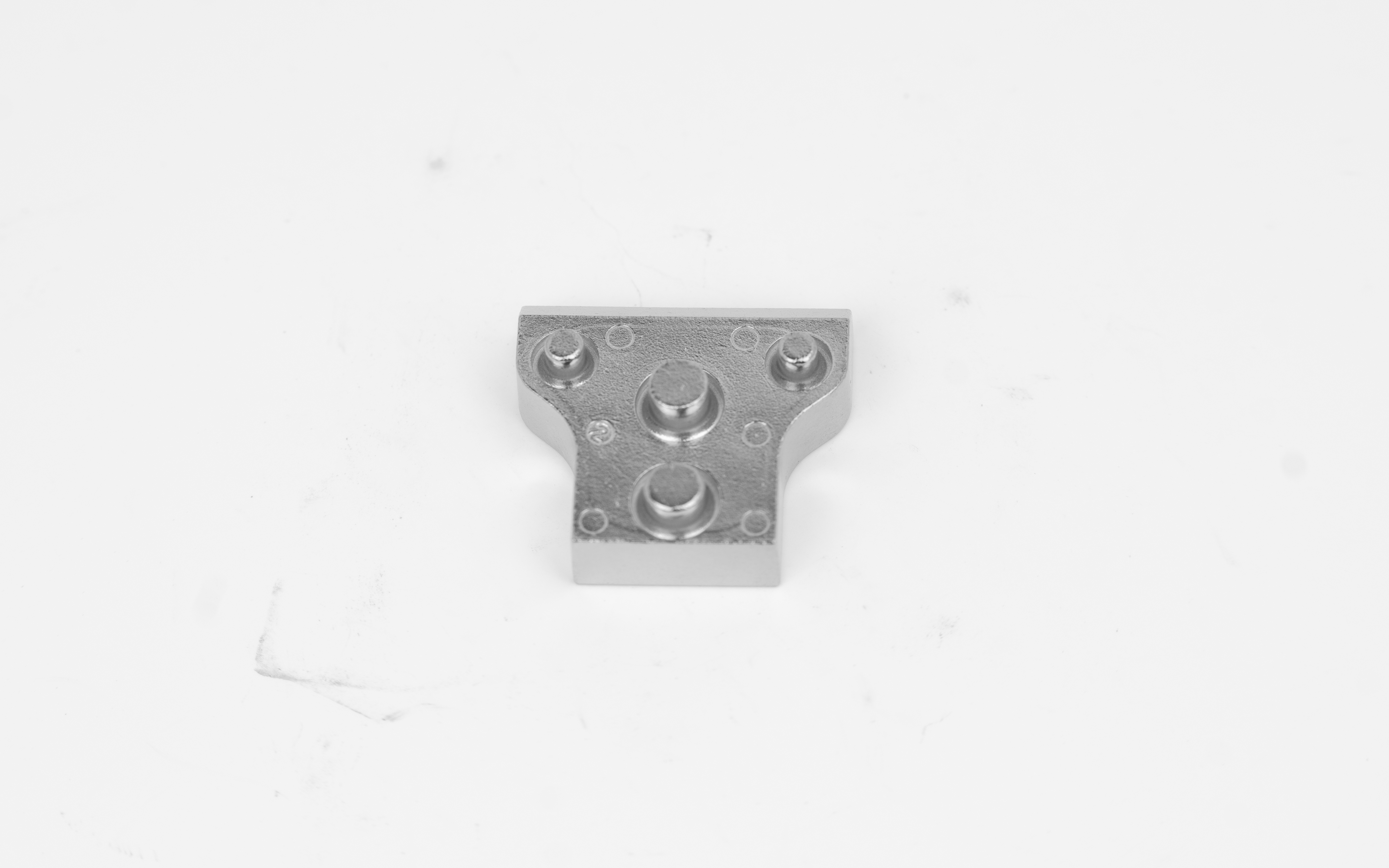

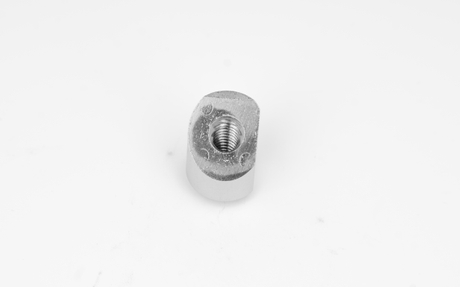

The process is compatible with various alloys including 316L stainless steel, 17‑4PH, iron‑nickel alloys and titanium alloys to satisfy working‑condition requirements such as corrosion resistance, high strength and wear resistance. It is widely used in new‑energy, 3C‑electronics, medical‑device, automotive and power‑tool industries. Typical examples include precision structural parts for new‑energy electric‑control units, micro internal components for mobile phones and surgical‑instrument accessories.
That said, MIM has its application boundaries. It is economically viable mainly for small‑to‑medium‑sized precision parts and offers no cost advantages for large components. Appropriate adoption of MIM releases structural‑design freedom in the design phase: part designs no longer need concessions for machining. Many special‑shaped geometries previously considered unmanufacturable can now be realized via integrated MIM forming.
Driven by rising downstream demand for miniaturized and increasingly complex parts, MIM continues to optimize debinding and sintering workflows for better dimensional stability and lower unit costs. As an integrated precision‑forming technology, MIM expands design possibilities, helps manufacturers streamline supply chains and mitigates errors caused by multi‑step processing. It has become a preferred route for mass production of special‑shaped complex precision parts.
