Driven by the rapid advancement of smart wearables, medical devices, humanoid robots and new‑energy vehicles, market requirements for metal components keep rising. Miniaturization, structural complexity, high precision and high‑volume output have become core demands. Shortcomings of conventional processes such as CNC machining, precision casting and stamping have become increasingly prominent. These traditional methods either fail to form intricate geometries, or suffer from prohibitive mass‑production costs and excessive material waste, making them inadequate for modern precision manufacturing. Against this backdrop, Metal Injection Molding (MIM), with its unique process strengths, has emerged as a vital new solution to manufacturing challenges for miniature complex metal parts.
MIM is an advanced near‑net‑shape technology that integrates plastic injection molding and conventional powder metallurgy. It perfectly combines the design flexibility of injection molding with the mechanical merits of metallic materials. Its core workflow is streamlined yet precise: ultra‑fine metal powder is homogeneously blended with dedicated binders to produce feedstock. The feedstock is then injection‑molded into complex green parts. Subsequent debinding and high‑temperature sintering remove binders and densify metal powders, yielding metal components with accurate dimensions and reliable performance. Complex geometries can be formed in one cycle with minimal secondary finishing.
Compared with conventional manufacturing technologies, MIM delivers distinct core advantages. First of all, it offers exceptional structural adaptability. It readily produces challenging features including thin walls, micro‑holes, contoured surfaces and hollow profiles that are difficult for traditional processes, removing major design constraints for components. Secondly, it balances precision and performance. Finished parts achieve uniform density and high mechanical strength with tightly controlled dimensional tolerances, fully meeting assembly and service specifications for high‑end equipment. In addition, MIM achieves extremely high material utilization with nearly zero scrap, greatly cutting production losses for precious metals and special alloys.

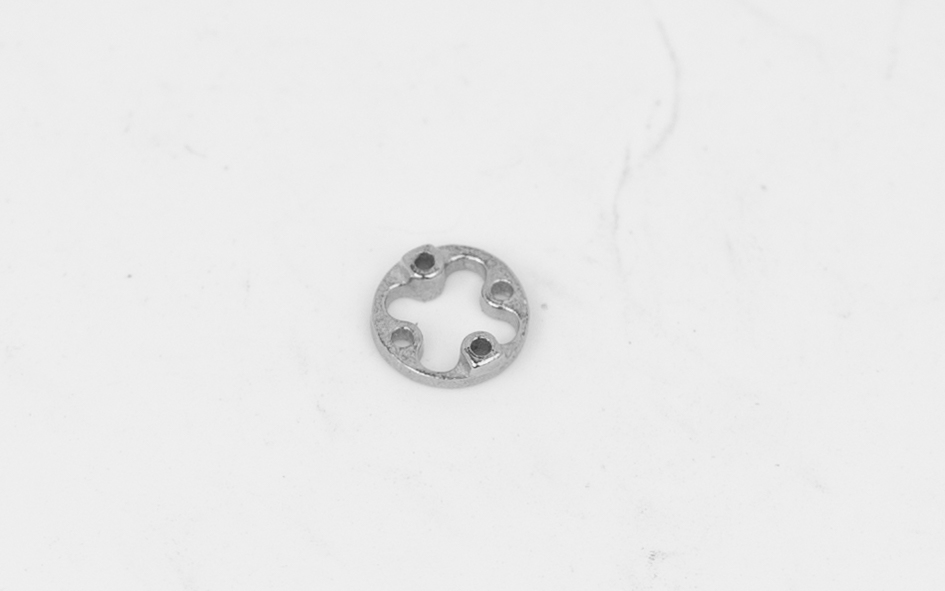

Today, MIM has been widely adopted across multiple high‑end manufacturing sectors. It is deployed for mass production of miniature latches and precision structural parts in consumer electronics, surgical instruments and implantable components in the medical industry, electronic‑control precision accessories for new‑energy vehicles, as well as miniature joint components for humanoid robots. As high‑end equipment manufacturing evolves toward higher precision and integration, application scenarios for miniature complex components keep expanding, further highlighting the market value of MIM.
To conclude, Metal Injection Molding (MIM) breaks through technical bottlenecks of traditional metal manufacturing, and delivers an efficient, cost‑effective and stable mass‑production solution for miniature, complex, high‑precision metal parts. As one of the core advanced‑manufacturing processes, MIM keeps driving industrial upgrading and has become an indispensable driving force within precision‑component manufacturing.
