How MIM Solves High‑end Precision Component Manufacturing Challenges amid the New‑Energy Wave

Against the rapid iteration of the new‑energy industry, sectors including new‑energy vehicles, energy storage and computing hardware impose multiple requirements on components: miniaturization, integration, lightweighting, high reliability, high‑volume production and low cost. Conventional processes such as CNC machining, casting and stamping frequently encounter bottlenecks when producing thin‑walled and special‑shaped complex components with multi‑feature integration. These bottlenecks include excessive processing steps, high material waste, poor batch‑to‑batch consistency and persistently high costs. As an advanced near‑net‑shape forming technology, Metal Injection Molding (MIM) leverages its advantage of integrated forming to address a series of pain points in manufacturing high‑end precision components for new‑energy applications.

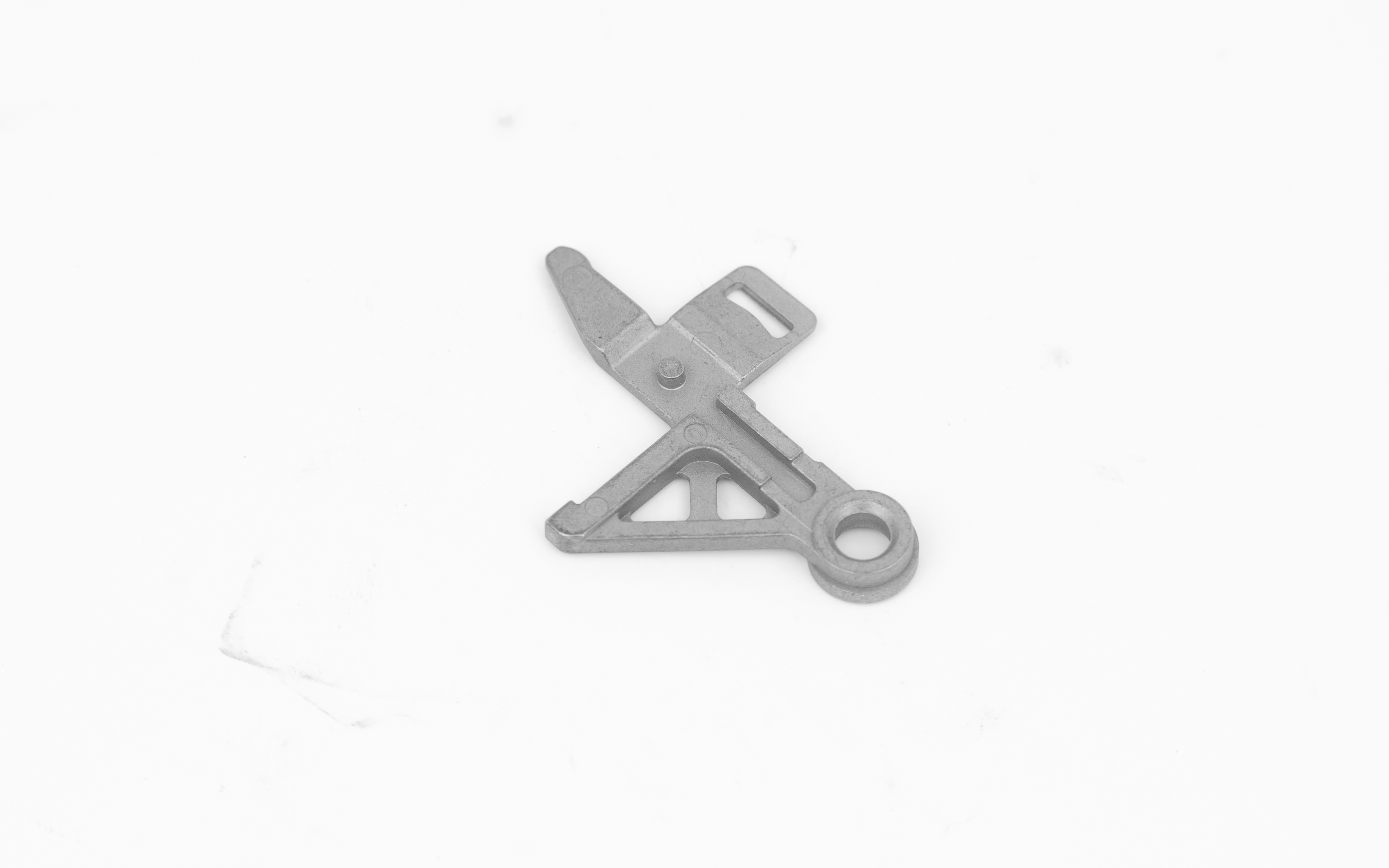

The three‑electric system of new‑energy vehicles constitutes a key application field for MIM. The 800 V high‑voltage platform, battery packs, thermal management systems and electronic control sensors feature numerous micro‑components with side holes, special‑shaped fasteners and complex flow‑channel structures. Conventional machining requires multiple milling and drilling operations with low material utilization. Assembly of discrete parts also gives rise to accumulated assembly tolerances. MIM enables integrated sintered forming of multiple discrete functional features. Sensor brackets, battery latches, valve‑housings, micro‑transmission parts and other components can be formed in a single process, drastically cutting assembly points and enabling integrated component design. Alloys such as 17‑4PH and 316L are selected to balance strength, corrosion resistance and shock resistance to meet automotive‑grade reliability standards. For mass‑volume production, MIM delivers visibly lower per‑unit comprehensive costs compared with CNC machining.

The booming energy‑storage and computing‑infrastructure sectors further exacerbate precision‑manufacturing contradictions. Liquid‑cooled pipe joints for AI servers, high‑speed connector housings and optical‑module heat‑dissipation structural parts occupy compact spaces. They demand intricate internal‑cavity structures alongside sealing performance and dimensional stability. While conventional processes can deliver qualified performance at the prototype stage, mass production often triggers dimensional drift, burrs and leakage. Through multi‑cavity mold‑based production, MIM realizes near‑net‑shape forming of complex flow channels and thin‑walled housings. Combined with limited post‑processing, it guarantees process capability (CPK) for batch dimensions and supports mass‑volume deliveries of over one hundred thousand units for computing hardware.

Another major challenge for new‑energy components lies in reconciling lightweighting and mechanical performance. Vehicle weight reduction directly improves driving range, while weight reduction for computing hardware lowers overall equipment load. However, lightweighting must not come at the expense of strength. MIM achieves a material utilization rate above 95 %, far exceeding that of cutting‑based machining. Under equivalent‑strength conditions, component weight can be reduced, breaking the conventional‑process limitation of “thickening materials for strength”. For high‑voltage, corrosive and high‑temperature operating conditions, powder materials including stainless steel and precipitation‑hardening steel can be flexibly matched. Closed‑loop control over debinding and sintering processes guarantees part density and mechanical properties to withstand harsh operating environments.

Nevertheless, MIM mass production for new‑energy applications involves far more than simple part forming; it relies on a complete process system. Early‑stage DFM (Design for Manufacturability) evaluation, feedstock formulation optimization, mold shrinkage compensation, sintering‑deformation control and full‑lot traceability are all indispensable. Many project failures stem not from material defects, but from failure to embed stringent automotive‑grade and computing‑hardware requirements into the design phase. Complete MIM solution providers cover the full chain from product design and mold development to sintering processes and inspection traceability, helping customers avoid risks in mass production.

Competition within the new‑energy industry now extends to supply‑chain manufacturing capacity. MIM dismantles design constraints imposed by traditional processes and resolves the long‑standing industry challenge of “qualified prototypes yet problematic mass production” for complex precision components. It delivers a component‑manufacturing pathway combining performance, lightweighting and cost advantages for new‑energy vehicles, energy‑storage systems and computing hardware, facilitating high‑quality upgrading of domestic new‑energy industrial chains.
