Prevention of Cracking in Metal Injection Molding (MIM)

Introduction

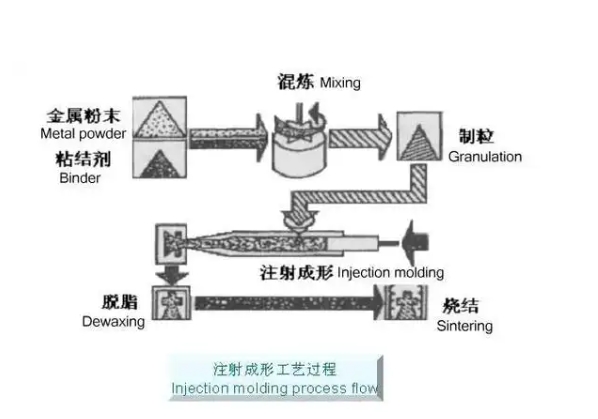

Cracking is a common defect in Metal Injection Molding (MIM) that can occur at various stages of the process, including molding, debinding, and sintering. If not properly controlled, cracks can compromise the mechanical properties and functionality of the final part. Based on extensive industry experience, MIMO has developed effective strategies to prevent cracking in MIM production. This article provides key insights and best practices to ensure high-quality, defect-free MIM components.

1. Common Causes of Cracking in MIM

Cracking in metal injection molding typically results from the following factors:

• Improper Feedstock Formulation: Inconsistent binder-to-metal powder ratios can lead to poor flowability and internal stresses during molding.

• Molding Defects: Uneven pressure distribution, inadequate venting, or improper injection speed can cause internal stress, leading to cracks in the green part.

• Debinding Issues: Rapid solvent or thermal debinding can create internal stress or structural weaknesses, resulting in cracks.

• Sintering Stress: Non-uniform shrinkage during sintering can cause cracks, especially in complex-shaped or thick-walled parts.

• Improper Handling: Mishandling fragile green or brown parts before final sintering can introduce microcracks that worsen during the process.

2. Strategies to Prevent Cracking in MIM

2.1 Optimizing Feedstock and Molding Process

• Ensure Proper Binder and Powder Mixing: A well-mixed feedstock with a uniform powder-to-binder ratio enhances flowability and reduces stress concentration.

• Adjust Injection Parameters: Proper control of injection speed, pressure, and temperature minimizes internal stress and prevents molding defects.

• Use High-Quality Molds: Well-designed molds with smooth transitions and proper venting reduce the likelihood of stress concentrations.

2.2 Controlled Debinding Process

• Gradual Solvent Debinding: A slow and controlled debinding rate prevents excessive stress buildup that can lead to cracking.

• Optimized Thermal Debinding: Temperature profiles should be carefully controlled to prevent sudden gas expansion, which can create voids and cracks.

2.3 Sintering Optimization

• Uniform Heating and Cooling: A controlled sintering cycle with gradual heating and cooling reduces thermal stress and ensures even shrinkage.

• Use of Support Fixtures: Proper support during sintering minimizes deformation and stress-induced cracking in complex parts.

2.4 Handling and Post-Processing Care

• Minimize Mechanical Handling of Green Parts: Fragile green and brown parts should be handled with care to avoid introducing microcracks.

• Perform Quality Inspections: Regular inspections using X-ray, ultrasonic, or microscopy techniques can detect microcracks before final processing.

3. MIMO’s Experience and Best Practices

At MIMO, we have successfully minimized cracking issues by implementing the following best practices:

• Advanced Feedstock Control: Our optimized powder-binder formulation ensures consistent flow and minimal internal stress.

• Precision Injection Molding: By fine-tuning injection parameters, we achieve high-quality green parts with minimal defects.

• Controlled Debinding and Sintering: Our precisely monitored debinding and sintering processes ensure defect-free final products.

• Comprehensive Quality Checks: We implement rigorous testing to identify and eliminate potential cracks before final production.

Conclusion

Preventing cracks in Metal Injection Molding (MIM) requires a comprehensive approach, from optimizing feedstock formulation and injection molding to carefully controlling debinding and sintering processes. MIMO’s experience and best practices have proven effective in minimizing cracking risks, ensuring the production of high-quality, reliable MIM components. By following these strategies, manufacturers can enhance product durability and performance, reducing production losses and improving overall efficiency.
