MIMO is a leader in Metal Injection Molding (MIM) technology, specializing in producing high-precision metal components for various industries, including automotive, aerospace, medical devices, and electronics. The MIM process combines the versatility of plastic injection molding with the material strength of metal, enabling the mass production of intricate, high-performance metal parts. A key advantage of the MIM process is its ability to achieve exceptional precision, allowing for complex geometries, tight tolerances, and minimal post-processing.
This article explores the precision levels of MIMO’s MIM process and how the company ensures the highest standards in its manufacturing practices.
1. The Importance of Precision in MIM
Precision is critical in MIM because it directly impacts the performance, durability, and fit of the final product. The high accuracy required for components, especially those used in industries like medical devices or automotive, makes tight tolerances essential. At MIMO, the precision levels achieved in MIM production are comparable to those in other advanced manufacturing methods, such as CNC machining, but with greater cost efficiency for large-scale production.
Dimensional accuracy: MIMO’s MIM process regularly achieves dimensional tolerances as tight as ±0.3% to ±0.5% of the part’s nominal size, depending on the complexity and material used. For smaller, simpler parts, tolerances can be even tighter, reaching ±0.05 mm or better.
Surface finish: The MIM process typically results in a smooth surface finish without requiring extensive secondary operations like machining or polishing. MIMO achieves surface finishes as fine as Ra 1.6 to Ra 3.2 microns, which is suitable for most industrial applications.
Complex geometries: MIMO’s MIM technology enables the creation of parts with highly complex geometries, including thin walls, fine details, and internal features that would be difficult or impossible to machine. This is particularly useful in producing parts like small gears, medical instruments, and precision components for electronics.
2. Achieving High Precision in the MIM Process
MIMO’s commitment to precision is reflected in the entire MIM manufacturing process, from powder preparation to final sintering. Several factors contribute to achieving the desired precision:
Powder Selection: The choice of metal powder and its particle size distribution play a crucial role in determining the precision of the final component. MIMO uses fine powders with particle sizes typically between 5-20 microns, which allows for a uniform distribution and results in high-density parts with minimal shrinkage variations.
Binder and Debinding: MIMO ensures that the binder system used during the MIM process is carefully optimized for each part. The removal of the binder (debinding) is a critical stage, as improper removal can lead to dimensional inaccuracies or defects in the part.

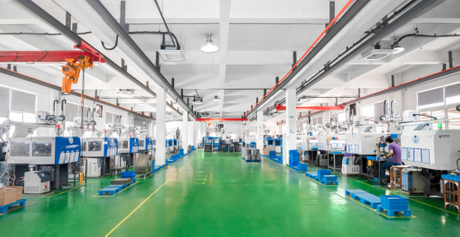

Injection Molding: During the molding phase, precise control over the injection parameters—such as pressure, temperature, and mold design—ensures that the metal powder and binder mix fills the mold cavities uniformly. MIMO employs state-of-the-art molding machines with high precision control systems to maintain consistency across high-volume production runs.
Sintering: After debinding, parts are sintered at high temperatures to fuse the metal particles, creating a dense and solid component. MIMO's sintering process is closely monitored to control shrinkage, which can be between 15% and 20% depending on the material. By accurately controlling the sintering conditions, MIMO minimizes dimensional distortions and ensures tight tolerances in the final parts.
3. Quality Control and Tolerance Management
MIMO employs rigorous quality control measures throughout the MIM production process to maintain precision and consistency. Advanced metrology techniques are used to inspect the dimensions, tolerances, and surface finish of each part.
Coordinate Measuring Machines (CMM): CMMs are used to verify that the dimensions of MIM parts conform to specified tolerances. MIMO regularly inspects critical dimensions with CMMs to ensure each part meets customer requirements.
Optical Measurement Systems: For smaller, more intricate parts, MIMO uses optical measurement systems to inspect complex geometries and surface finishes without making physical contact with the parts, thereby avoiding damage.
Statistical Process Control (SPC): MIMO integrates SPC into its production lines to monitor and control process variations in real time. This ensures that precision is maintained across large production volumes, and any deviations from the set tolerances are quickly addressed.
4. Applications Requiring High Precision
MIMO’s high-precision MIM components are used in a variety of industries where accuracy is critical:
Automotive Industry: MIMO produces precision gears, brackets, and housings used in automotive assemblies. These parts often require high dimensional accuracy to ensure proper fit and function in engines, transmissions, and safety systems.
Medical Devices: MIMO manufactures medical components that demand exceptional precision, such as surgical instruments, dental implants, and orthopedic devices. These parts must adhere to strict tolerances for safety and functionality.
Electronics: In the electronics industry, MIMO’s MIM components are used in devices like smartphones, tablets, and wearables, where compact size and high precision are essential for performance and durability.
5. Continuous Improvement in Precision
MIMO is committed to continuous improvement in its MIM process to enhance precision and product quality. The company invests in advanced machinery, metrology equipment, and employee training to stay at the forefront of MIM technology. MIMO also works closely with its customers to understand their precision requirements and develops custom solutions to meet even the most challenging specifications.
Conclusion
MIMO’s MIM process offers an exceptional combination of precision, efficiency, and scalability, making it a preferred choice for producing high-quality metal components. By leveraging advanced techniques and strict quality control measures, MIMO consistently delivers parts with tight tolerances, superior surface finishes, and complex geometries. With a commitment to innovation and precision, MIMO is well-positioned to meet the growing demands of industries that rely on metal components for critical applications.
