Metal Injection Molding (MIM) Process Detailed Explanation and Application Prospects

Metal injection molding (MIM) is an advanced manufacturing process that combines plastic injection molding technology with powder metallurgy. This process involves mixing fine metal powder with a binder. The mixture is then injected into a mold using an injection molding machine to form a "green" part. This part is then degreased to remove the binder, and finally sintered at high temperature to bond the metal powder into a dense component. MIM is capable of producing small, complex metal parts with high precision, making it suitable for mass production and widely used in the automotive, aerospace, medical, and electronics industries.

Detailed MIM Process Flow

1. Raw Material Preparation (Mixing): Metal powder with a particle size of approximately 4-25 microns is mixed with a wax or thermoplastic binder in a volume ratio of approximately 60:40 to form a uniform granular feedstock.

2. Injection Molding: The feedstock is injected into a mold under high pressure to form a "green part" approximately 120% the size of the final product.

3. Degreasing: A controlled process removes most of the binder, resulting in a porous but well-formed "brown part." 4. Sintering: Sintering at a high temperature close to the material's melting point removes residual binder and densely bonds the metal powder, ultimately producing dimensionally stable metal parts with excellent mechanical properties.

Advantages of MIM

· Complex geometries: It can produce complex, small parts with fine details and tight tolerances that are difficult to achieve with traditional metalworking.

· High material utilization: Virtually eliminates material waste, reducing the consumption of expensive raw materials.

· Significant cost-effectiveness: It is particularly suitable for large-scale production, reducing unit costs while still meeting high-performance requirements.

· High design flexibility: It enables the integration of multiple materials and complex functions, enhancing part performance and application range.

Application Prospects

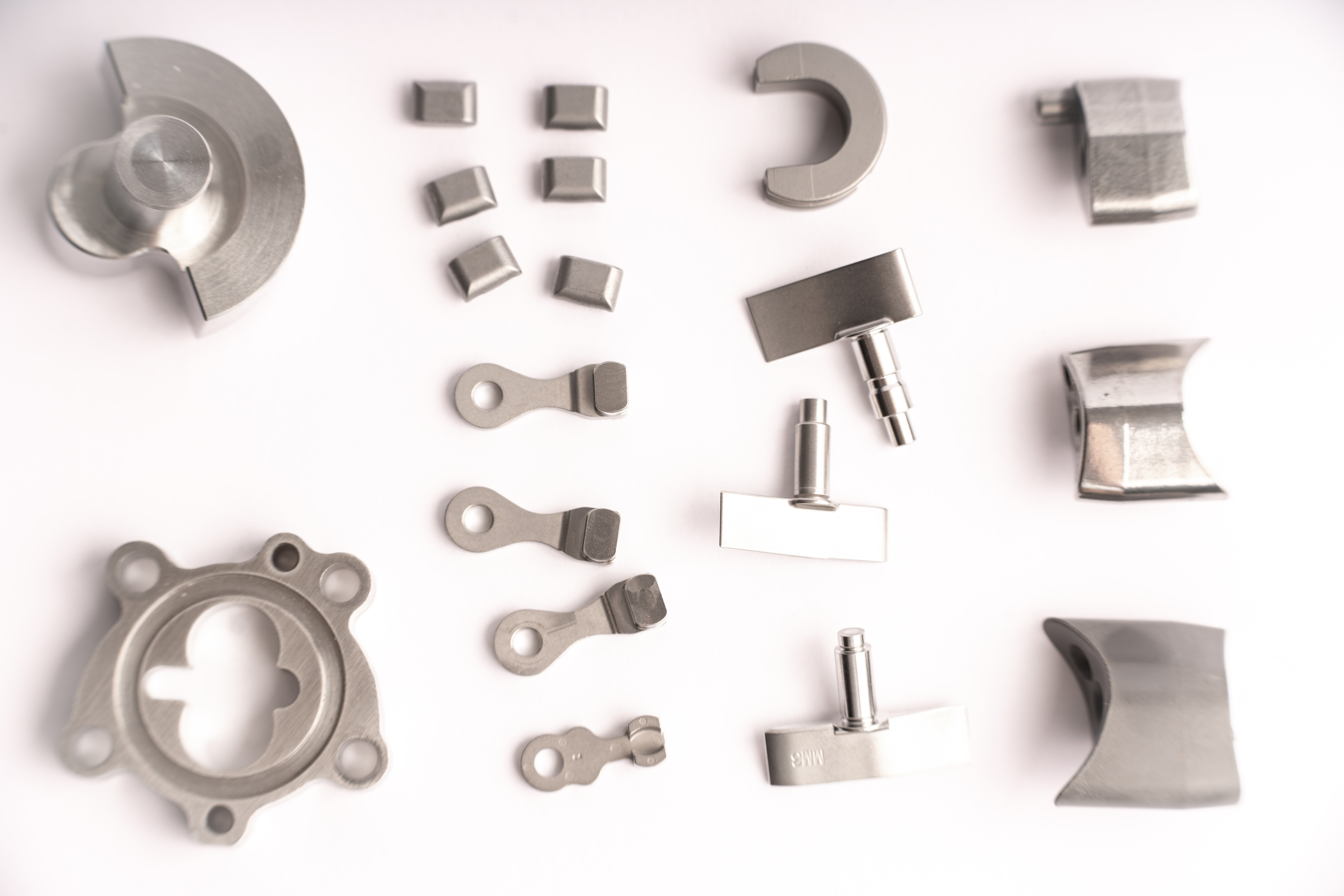

The advantages of MIM technology hold broad prospects in a variety of high-precision, high-reliability industries. Typical applications include medical devices (such as surgical instruments and implants), automotive parts (lightweight and complex structures), consumer electronics (micro gears and hinges), and aerospace. With continuous technological advancements and a wider range of material options, MIM is becoming increasingly important in the manufacture of high-performance metal parts, and market demand is expected to continue to grow rapidly. In summary, the metal injection molding process is becoming one of the key technologies for the manufacturing of precision metal parts due to its high precision, complex shape manufacturing capabilities and cost advantages. It has a wide range of applications and huge development potential.
