Metal Injection Molding (MIM) is widely used in producing complex-shaped metal parts, particularly in industries such as automotive, medical, and electronics, due to its unique advantages. However, like any manufacturing process, MIM has certain errors that can impact the final product quality. Today, we'll dive into the sources, types, and control methods of errors in the MIM process.
Powder Quality and Particle Size Distribution MIM uses metal powder as the raw material, and the quality of the powder directly affects the final part's forming accuracy. If the powder's particle size is uneven or contains impurities, it can affect the material's flowability, leading to dimensional errors in the molded parts.
Injection Molding Process Parameters The injection molding process is the core step of the MIM process. Process parameters such as injection speed, temperature, and pressure, if not properly set, can affect the final part's dimensions and shape. For instance, an excessively high injection speed might result in uneven filling, leading to dimensional errors.
Mold Design and Manufacturing The accuracy of the mold plays a crucial role in the errors in the MIM process. The precision and surface finish of the mold directly determine the accuracy of injection molding. If the mold has small deviations or wear, it can cause dimensional changes in the parts.
Post-Processing MIM parts usually undergo post-processing steps like sintering to improve strength and density. During sintering, due to material shrinkage, the dimensions of the parts may change, resulting in errors. The control of sintering temperature and time is critical; improper control can lead to dimensional deviations.

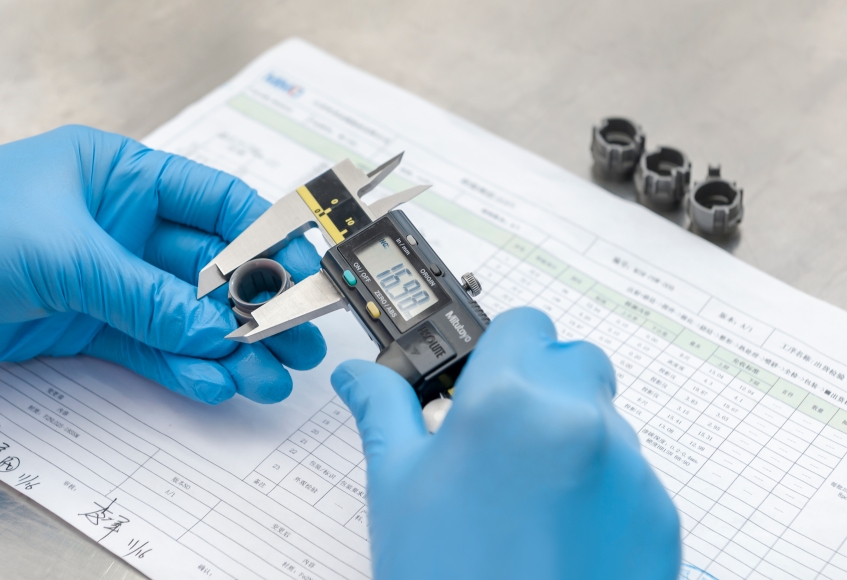

Dimensional Errors Dimensional errors are often the most significant type of error in MIM parts. Due to injection molding and sintering shrinkage, MIM parts typically exhibit some dimensional deviation. Generally, the dimensional error of MIM parts is around ±0.1mm, but for parts requiring high precision, the error can be reduced to ±0.05mm.
Shape Errors During the molding process, uneven material flow can cause slight deviations in the part's shape. These errors are most evident in parts with complex geometries, such as internal cavities and fine components.
Surface Roughness Errors Due to the effects of the injection molding and sintering processes, parts may exhibit uneven or rough surfaces. Typically, the surface roughness can be controlled between Ra 3.2 μm and Ra 1.6 μm, but post-processing steps (such as polishing and grinding) can further improve surface quality.
Warping and Deformation Due to temperature changes, material flow, and other factors, MIM parts may experience warping or deformation during the molding and sintering processes. These deformations can affect the final geometry of the parts, especially in long or thin-walled components.
Optimize Process Parameters Proper setting of process parameters is crucial to controlling errors in the MIM process. For example, adjusting the right injection speed, temperature, and pressure can improve material flow uniformity, reducing dimensional errors.
Improve Powder Quality Fine metal powders with a uniform particle size distribution improve material flow, reducing errors during molding. Additionally, selecting high-purity powders with fewer impurities contributes to better part quality.
High-Precision Mold Design and Manufacturing High-quality molds improve the accuracy of the MIM process. When designing molds, factors such as part shape, size, and shrinkage rate must be carefully considered to ensure mold precision. Mold maintenance and inspection are also critical to preventing wear that could affect part quality.
Strict Control of Sintering Process The sintering process' temperature, time, and atmosphere control are critical to part dimensional accuracy and strength. Strict sintering control can effectively reduce the dimensional errors that arise during the sintering process.
Post-Processing Post-processing (such as grinding and polishing) can further improve part surface quality and compensate for minor shape and dimensional errors caused by injection molding and sintering.
Overall, errors in the MIM process primarily arise from several stages, including powder quality, injection molding, mold design, and sintering. However, with continuous optimization of process technologies, the error range in MIM processes has significantly decreased, making it possible to produce high-precision parts. By properly controlling various process parameters and incorporating strict quality control and post-processing, MIM can produce high-quality, low-error metal parts that provide reliable solutions for various industries.
