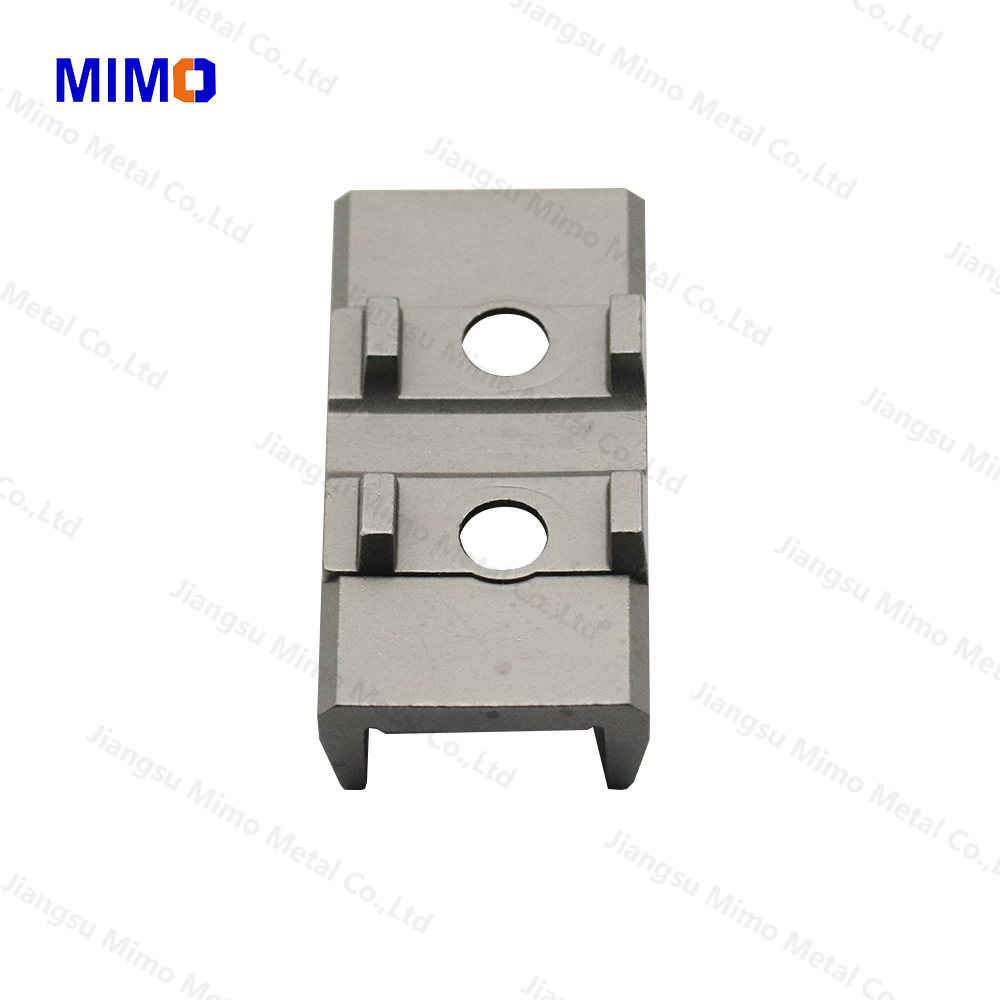

Product Name: MIM Part of Power Tool

Unit Weight (g): 17.95

Dimensions (mm): 35 x 10.9 x 17

Material: Ferrous Based Metal Powder

Application: Electric Tool

Component Type: Structural Parts

OVERVIEW OF MIM

MIM technology, also known as metal injection molding, combines two technologies: injection molding (known from plastic injection molding) and sintering technology.

Due to the implementation of high geometrically complex requirements already in the production process, this technology is referred to as a near-contour manufacturing process.

In this molding process, fine metal powder and thermoplastic polymer resin are mixed in order to obtain a sprayable granulate, the feedstock. The green body obtained in this way is released after cooling in order to detach the plastic. The resulting component, also known as brown body, has a porous surface and is therefore sintered just below the melting temperature.

The advantage of the MIM process is the diverse selection of shaping options and materials. MIM technology is particularly suitable for the production of small and medium-sized metal parts of complex geometry in medium and large series.

While in other processes several components have to be produced separately and assembled to form a component group, one component can be made in one piece in the MIM process. Also bores, threads, undercuts, engravings, and much more can be produced in one production step.
